Alexandra is a
1943 Knud Reimers designed 6 metre racing yacht. Built from
Mahogany planking on Steamed oak ribs. She was completely restored in 2003.
The work included 100 metres of new planking, all new ribs, frames and floors.
Even a new 3 ton lead keel was made.
Mahogany planking on Steamed oak ribs. She was completely restored in 2003.
The work included 100 metres of new planking, all new ribs, frames and floors.
Even a new 3 ton lead keel was made.
If anyone is
interested in the full story of Alexandra's restoration it can be found
at
the bottom of this page.
the bottom of this page.
Sailing again,
but this time no leaks!
Launch day in St
Tropez

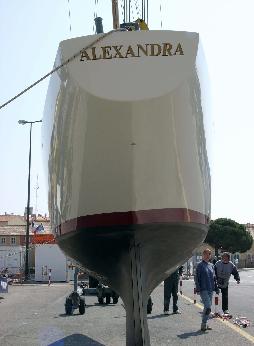

Amazing lines.
Boat lifted from lifting eyes
Final touches
and gold cove line going on

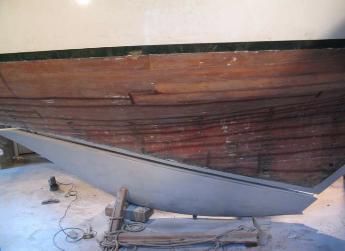

Mating up the
hull to the new keel

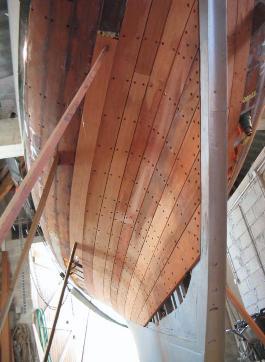

Just some of the
new planks going in.
Almost all the planks under the
waterline were replaced
Almost all the planks under the
waterline were replaced
Pouring the lead
into the mould.
Boat with old
keel removed.
Cutting up the
old keel for re-melting
using a chainsaw!
using a chainsaw!
The Alexandra
Technique.
This is a tale of a boat and the people it has brought together. When Luc Decramer bought Alexandra he surely
had no idea what he was letting himself in for. He had wanted a classic yacht for many years and finally found
what he was looking for in Alexandra. She was a racing yacht from 1943 and he bought her on the spot. Since
then everyone who has come into contact with the boat has been on a huge learning curve, myself included.
Luc’s first surprise was that his boat was one of the famed 6 metre class. Designed by Knud Reimers and built
in Geneva in Switzerland. His second surprise was that she leaked like the proverbial sieve. No better analogy
could possibly serve. It was at this point that I entered the fray. I went to see the boat which was truly sinking. We
lifted her out to see if we could come at the leak. The first thing we discovered was a patch of fibreglass stuck
to both sides of the hull in the area of the mast step. Not a good sign. One of the crew members said he had
known the boat 15 years and it had always leaked really badly.
I was not optimistic about fixing the leak. I ripped off the patches and found a host of repairs all done in a hurry
at different times by different people. I said that I might be able to stop the main leak but didn’t see that my
efforts would be any better than the dozen or so ship wrights that got here before me. I did stop that leak but still
she leaked really badly. One crew member was required just for pumping and he spent most of the time up to
his knees in water. They also had an electric pump that sent out a continuous stream of water. Clearly
something needed to be done.
Luc loves his boat and wanted it not to leak so he asked if I would like to do the work. I did. So we set about
trying to get over all the obstacles that this decision had set in motion. First we needed somewhere to do it. Not
so easy here on the Riviera. Most yards are suspicious of wooden yachts since they are always there longer
than expected and space is so limited that the only way the yards make money is by turning over hundreds of
boats, they simply are not interested. I went everywhere and asked everyone but nothing could I find even
vaguely suitable for a boat that is over 11 metres long and 3 metres high. In the end an acquaintance put me in
touch with a crazy French man named Jacques.
I went to see him and the barn that he was offering. His farm is a few miles from St Tropez quite in the country
and perched on a hill with a lovely view of the bay of St Tropez. The barn was great but it was only 10 metres
long but that could be solved by leaving the doors open and building a small alcove. My main concern was the
bumpy, muddy and hilly driveway which was 2 km long. As for turning the boat around once there I wasn’t
confident. I told Jacques that if the transporter said he could do it I’d take it.
Next I called José who had been recommended to me by a mate. José is a tiny French bloke, even smaller than
me yet he is fearless. We went to see the barn and I asked if he thought he could do it. “Pourquoi pas” was his
simple reply. On the appointed day he turned up 4 hours late and by the time we got to St Tropez it was lunch
time so we took this opportunity to get fuelled up. It was going to be a long day. At about 16-00 M. Arman
strolled down to lift us out. His ancient yet well used and greased crane plucked Alexandra out and in one fluid
movement and with millimetre precision he placed it gently on José’s trailer. When we finally got away we drove
straight out into a traffic jam. Since it was November the days were not too long and it was getting dark as we
arrived. Half way up the drive José’s 4x4 couldn’t manage Alexandra’s 4 tons on its own so we had to add
Luc's car before we got to the top.
By now it was dark. All Jaques’ family were out and the scene was lit by torches and headlights while José did
the impossible and turned the boat around and backed it up to the shed. Getting this far was a good sign but
we still had to get her off and into the shed. I for one was keen to see how José planned to do that since his
trailer was higher than I’d imagined and as a consequence the boat was 20 cm higher than the door way. There
was a huge concrete beam over the door way there was no way to make the hole bigger. José was unfazed
and proceeded to reverse Alexandra in. By lifting the front of the trailer we could lower the stern. We managed
to get in a few metres until we touched the beam. To gain precious millimetres we removed a myriad of deck
fittings, winches etc and inched in bit by bit. In the end we even let all the air of the tyres. The best we could do
was to get her in far enough so that we could suspend her from the beam above the entrance. José had a huge
10 ton chain hoist and since Alexandra had lifting eyes it wasn’t too hard to hold her up while we tried to get the
trailer out. Even with the wheels removed it was no easy task removing the trailer but remove it we did. I
chocked up Alexandra and we all went home. It was after midnight.
So now we had her just metres away from where we wanted her and the saying “so near and yet so far”
suddenly made sense to me. In order to get her in we would have to fit RSJs to the barn. This we did and two
weeks later we walked her in with the aid of 4 little chain hoists and some borrowed strops. Then we closed the
doors a bit and built the alcove. While we were fitting the beams Gus, my faithful assistant was busy stripping
off the paint so we could see what was wrong. The worst discovery was the broken keel. That was a bit of a
shock. It had been like it for a long time, that much was obvious.
How can a 3 ton lead keel snap in two? You’re probably asking yourself. It happened something like this:
Despite having already designed a few 6’s, Reimers somehow miscalculated the weight of the keel and the
boatyard later removed a huge cube from the back of it. I calculated it to be roughly 500 kilos. I suspect they
wanted to remove more but they couldn’t. As it was they cut out a hole so big between two keel bolts that both
bolts were visible when I removed the wood. They had cut deep, leaving only about 8 cm at the bottom. The
keel is round underneath so there wasn’t really much holding it in one piece. I think this would have been OK
had the yard not fitted the wood so snugly leaving no room for when the wood swelled. This and the fact that the
lead at the bottom of the keel was of bad quality meant that when the wood swelled the force was so great that
it simply snapped what was left.
The front section of the keel had dropped by about 7mm and this huge gap between the lead and the keelson
had been filled with sikaflex and painted over. The crack on the keel had been filled with car body filler. I reckon
it had been like that for decades. Here was a show stopper. What were we to do? My obvious reaction was to
get someone else to do it but fate conspired against me. The original keel bolts were made of Iron and cast in
place. The bolts had corroded and swelled in their holes so I very much doubted if the boat would lift off the
bolts and I certainly didn’t have the room above the boat. I would have to cut through the bolts. That action alone
would mean making a new keel with the added difficulty of casting in 5x 30mm keel bolts and 6x 20mm floor
bolts in exactly the same place as before! Then there was the fact that the keel is a bit bulbous which would
mean a complicated mould because you wouldn’t be able to lift out the keel without separating the mould.
After much deliberation I decided to make a new keel. Luc agreed and so we set off on a great adventure.
Jacques had no problem with us making a keel by the barn so there seemed no reason why we couldn’t do it. I
had no experience making keels. I never once thought I’d have to do so. How many times have you come
across a snapped keel?
Where do you start? I knew that people had done similar things in gardens and boatyards manage to do it. I
searched the internet but didn’t have much joy. I discovered that Lead melts at about 570 degrees Celsius. I
found a few sites of companies that make keels but little on DIY keel making. One crazy bunch of Americans
tried but their wooden mould leaked then burst into flames. Basically I was on my own. We would need some
lead, 3 tonnes just to be sure we had a bit extra. The decision to use new lead was taken collectively after I
discovered that the whole starboard side of the keel was crumbling away. Since Alexandra was built during the
war it was a fair guess that the lead may not have been of the best quality, the demand for bullets being what it
was. Boat keels are not made of pure lead, they must have between 3 and 6% Antimony. The price for this
Antimonial lead varied hugely ranging from about 3000€ to over 8000€ suffice to say we opted for the cheaper
of the two which came from Belgium in ninety 35 kilo pigs. It was delivered by an artic truck even though I told
the transport company that we were in a place that is inaccessible. That was fun, I met with the driver and he
followed me to Jacques. I never would have thought it possible. He got as far as Jacques’ drive and even then
turning around was not easy but he did a fantastic job. He told me if he had known where I was taking him he
wouldn’t have come. I knew that, that’s why I didn’t tell him! The pigs were dumped on the road and we loaded
up Jacques’ Land Rover three times and soon we had an ugly pile of lead outside the workshop.
I didn’t have much joy finding out about mould making. I suppose I should have made a steel mould in two
halves but that seemed to me to be rather expensive and difficult to get those lovely curves right. I didn’t know
how the sand technique worked and didn’t see how I could cast bolts in with any accuracy. In the end I
discovered that there was a high temperature resin that might work. Rob Francis at Borden Chemicals was
brilliant and I decided to make a mould using their Phenolic resin. When it burns it carbonises but stays in
shape. The only draw back is that it gives off moisture as it fully cures. I did some experiments on a small scale.
The moulds I made withstood the molten lead but bubbled a bit as the resin gave off water. However this did not
affect the final product and I can’t help feeling that the bubbling lead assists in removing any air pockets that
might occur.
Before I could make a mould I had to remove and reassemble the old keel. With a reciprocating saw and a long
blade I cut through the keel and floor bolts. Just before I cut the last bolts I made up a crude cradle on greased
boards to allow me to move the keel out from under the boat. The boat was supported by strops under the stern
and bow. I cut the bolts, the hull popped up free of the burden. The hull on a 6 metre accounts for only about
25% of the weight of the boat. With the keel off I saw that the keelson was bowed as a result of the snapped
keel. I chocked the boat up with all it’s weight on one point in the hope that when I was ready to fit the keel it
would have straightened up a bit. Not only was the keelson bowed, so too was the stern post. I removed the
steel floors, the only part of the boat not to have moved, so that the hull could relax. If you looked along the hull
planking you could see that where the floors were the hull seemed to be bulging out.
Moving the keel about was done with a couple of chain hoists. I welded crude eyes to the old keel bolts and
lifted it up a bit so that I could work on it. Once the two pieces were back together I set about making the shape
smooth again. I also had to take into account a shrinkage of about 3%. On a 3 metre keel that’s about 30mm
along it’s length but just a few across it’s width. I added filler to the keel to extend and widen it. This was a horrid
job and very dusty. I used a ridiculous amount of filler, some 12 kilos. When it was shaped it looked great and I
painted it and applied wax so that the mould would release when cured.
I then laid up a few laminates using chopped strand mat and the phenolic resin. The problem with the resin is
that it only cures with temperature. I was doing this in December. I hired a space heater and stoked the fire up. I
managed to get the resin to cure enough to be able to remove the mould. But because of the slightly bulbous
shape I had to cut it in half to get it off. I then moved into the kitchen, right infront of the fire. I used all the 25
gallons of resin and ended up with a fairly solid structure. The resin is salmon pink as it starts to cure then goes
a deeper red.
Next task was to make a framework that could be attached to the keel bolts to so that they would be in the right
place when cast in. This I did using angle iron and thin rod. The keel bolts were remade and fitted into the
original holes in the keelson. I then welded them together to ensure they would stay in the same place. The floor
bolts would be tapped in later.
One other task I had to do was making the keel the same weight as it was before but without being weak as it
was before. I finally discovered these bricks that are very light and could easily withstand the heat. I cut these
and bolted them to the framework. One cubic centimetre of lead weighs 11 grams so it was easy to calculate
how much brick to insert in the keel. It was possible to remove the same weight as before yet not from the same
place. I wanted to leave a decent wall thickness so put bricks in between 4 bolts and not two as before.
There was yet another issue to complicate matters further and that was that the boat was still sitting stern down
despite the huge block of lead the original builders had taken out. Luc was talking about fitting an engine so it
made sense to try to move some of that weight forward. The best I could manage was to move 100 kilos
forward by about a metre. Would it make much difference? There would be only one way to know for sure and
that would be to put the boat in the water and that was a long way off.
All these decisions made, it was time to consider the actual casting of the keel. The local scrap yard cut a huge
steel gas cylinder in two for us but wouldn’t deliver. Luckily Jacques came to our rescue, and not for the first
time either and put it on his trailer. This was placed on the remains of the RSJs and 4 huge bricks, the same
type used inside the keel. Each one can take a 54 ton load despite being really light. Jacques donated a
rectangular water tank to act as a grate. I cut it up and made holes in the bottom. A trough was dug under this in
the hope that the fire could get more air. A way was needed to control the flow of molten lead so I concocted a
valve from 20mm bar ground to a point at one end. This was inserted into a steel gas pipe fitting welded to the
bottom of the cauldron. A lever was attached so that it could be moved up and down without getting near the fire.
The 3 tons of lead was moved again, not far but humping ninety 35 kilo pigs 4 metres and up one metre is no
easy task. They were stacked neatly in the cauldron. Three tons of oak was ordered from a local wood yard.
Sounds like a huge amount I know but I thought it best to have too much than not enough, besides we needed
fire wood for the workshop, it can get quite fresh in the winter.
The mould with its framework, keel bolts and bricks was placed into a hole that was dug by Cristophe in his
mini digger but he sliced through the water supply to the workshop which was interesting for a while. The earth
was put back in and packed as tightly as possible around the mould. All we had to do now was do it. I had
simply been ignoring the fact that at some point I would have to actually pour the keel. If it went wrong it would
mean much complication and certainly expense and lost time. It didn’t bear thinking about. Which is why I didn’t
think about it. More than once I asked myself what I was doing.
We started early and Gus got the fire going, as it got hotter we added more and more logs until an hour or two
later we had a roaring and extremely red fire so hot you couldn’t get near it. The lead started to melt quite
quickly and it was fun to see the pigs collapsing. To get the whole three tons liquid took about 4 hours.
In retrospect the keel pouring was an anti climax. I opened the tap, nothing happened so we heated up the short
outlet pipe with a serious blow torch and suddenly out it came. A mere 5 minutes later we were done. I shut the
tap, the flow stopped and there was a keel already starting to cool at the extremities.
The next day Cristophe dragged it out of the ground with the digger and we were faced with the prospect of
dragging it into the shed a distance of 6 metres over a sandy surface. Gus solved this problem brilliantly. Why
didn’t we use the old keel (which was in the shed) to pull in the new one? The chain hoists were attached and
we heaved it in slowly. Once under a beam it was easy to lift it up in order to clean it up and lower it onto a
cradle so it could be moved about. 4 holes were drilled into the floor and steel bar inserted. These were the
anchor points for the chain hoists. The keel could now be moved in any direction.
The keelson had certainly straightened out during the two months resting with all the boats weight in one place.
It still wasn’t straight but it was a considerable improvement. One added bonus was the straightening of the
rudder post which previously was also bowed. The top of the keel was cleaned up. I found the electric plane to
work best especially when used backwards. All the chippings were gathered to be melted down later.
The underneath of the keelson was painted and repaired in places. The boat was lowered onto the keel and the
floor bolt holes marked from above. The keel was dragged out again and the holes tapped to a depth of about
7 cms. A special tap was bought to enable us to cut a thread 20mm in diameter. This took some time but
wasn't as hard as I thought it would be. 6 x 20mm bolts were then made in varying lengths from about 30cms to
over 100cms begging the question how did the boat yard do this. Did they lower the boat over a metre onto the
keel? All the bolts are in the same plane so it’s possible at least. Above Alexandra was a mere 30cms so there
was no choice for us.
The boat was bedded onto the keel with 3M 5200 polysulphide. 8 tubes were squeezed onto the keel and the
boat lowered onto it. I reckon you could leave the keel bolt nuts off and that keel could never fall off. I pity the
poor bastard that has to take the keel off next time, luckily I’ll have been dead for about 50 years so they can
curse me all they want!
Finally the keel was done. We all went out to our favourite restaurant to celebrate. Between Gus and I we did
400 hours work and 3 months had passed since we first put Alexandra in the shed. “What a job!”
Now I could start on the woodwork. First were the frames, a bit bigger than the ribs at 35 x 30mm. Here was a
chance to get the boat in shape a bit more. Since the steel floors couldn’t move but the wood could, there was a
bump by each floor so this was remembered when I fitted the frames. Gradually she straightened up a bit.
There were 18 frames to replace. They were oak originally and steamed but since I had no desire to take off
the plywood deck to gain suitable access decided to scarf them on to the existing frames using ash, which likes
epoxy and bends well. It’s easier to work than oak and in its laminated form is probably as strong as the original
oak. The main reason I used ash was in the hope that the steel bolts that are fitted through them will not corrode
so readily as if they would in oak.
After the frames, the ribs, all 36 of them. Some of them had unbelievable bends and even thin laminations were
only just doing it. How those original boatbuilders managed to steam them round remains a mystery. They must
have broken so many.
6 weeks passed doing the frames and ribs. Now that the skeleton was repaired I could do the skin. We bought
50x 3metre long planks in varying thicknesses from a wood yard in Belgium, Honduras mahogany as original,
mainly because some of the interior is varnished. It’s a nice wood to work but it made my hands go black for the
whole time I was doing the planking.
Alexandra’s planks are 16mm thick, tapering towards the ends, down to as little as 12mm. It’s clear to me now
that Knud Reimers was a great designer but he was no boat builder. I can well imagine the curses as those
poor builders tried to get a piece of wood to bend into one of Alexandra’s amazing curves. The first 6 planks on
each side were steamed in. I would make a template of the plank I wished to change from thin strips of 3mm
ply. These strips are tacked to the top and bottom of the space and held there by gluing on vertical strips
making a strong whole that doesn’t change shape. This is placed onto the plank and it is marked with a very
sharp and concentration inducing Japanese marking knife. Then the jigsaw is used to cut close to this line and
after the block plane cleans it up. A bit of trimming here and there and the plank is ready for fitting.
I decided to start at the bottom and work up. This way I would be able to fit the last planks on a convex part of
the hull, since they would not be trapped by their neighbours. Originally Alexandra was planked up with no
caulking of any kind but I decided to spline the hull since there would be a mixture of old and new planks and to
get planks fitting with that sort of precision takes much longer to achieve. We didn’t have the time. Some of the
original planks had really shrunk so a spline wood was needed that could compress well and take up the slack,
producing a tight hull but without stressing the structure too much. Red cedar fitted the bill perfectly and I had the
local wood yard cut me 200 metres of angled splines with the grain running in such a way as to maximise the
compressibility.
Nowadays splines are made by routing a square section between two planks, a difficult and slow process. I
figured it would be possible to put the bevel on the bottom of each plank and pre make the slot for the spline.
This way it would taper and allow me to glue only the top of the spline to the plank so that if for some reason a
plank needs removing, it won’t be stuck to it’s neighbours. Since I was going to replace most of the planks
under the waterline I could pre cut most of the spline slots leaving only about 20 metres to do. A special hooked
blade was made that very efficiently opened the slight gap and left it clean for the splines.
It was Gus’s job to fit the splines. He used a staple gun to hold the splines in place, as far in between the planks
as possible. Just before the epoxy had gone off the staples were removed.
Another job for Gus was making and fitting the plugs. All 2000 of them in two sizes, ½ inch and 5/8 th of an inch,
the larger ones being the floor bolts. The bigger plugs were glued in with PPU glue so that they might be
removed more easily when the galvenised bolts are wasted. After the plugs were done I went round with a
chisel and a mallet and bashed off the plugs, leaving just a little to sand down.
The bottom concave planks were fitted by steaming. The planks were soaked overnight and spent a good hour
being vaporised. Speed was called for here, not only that but organisation. Clamps were laid on the floor ready
opened for use. The plank was put in rough position and clamped up. When it had cooled the clamps could be
loosened and the plank knocked down to sit on the one below it. The next few planks were shaped. An old
wooden plane was modified to cut a concave shape to the planks. After planing I used 60 grit sand paper on a
long and convex block. After fitting the planks to the boat they needed final shaping. This was done with a belt
sander on the convex areas and a spokeshave used across the grain on the concave stuff. It worked
surprisingly well and I was very pleased with the final shape of the planking.
Planks done now, she was looking good, almost a shame to paint it. Still much work needed to be done. As I
was doing the planks I realised the full extent of the rot in the wooden floors so they all needed remaking.
Originally these huge 60mm thick monsters were made from crooks of Oak but there was no chance I’d ever
find anything like that so I didn’t even bother to try. I used instead Sapeli which is a hard wood and relatively
easy to work. I made the floors out of many pieces and laminated them up into one extremely strong structure.
Rather than drill the holes for the floor bolts later I routed out a groove in the two centre sections so that when
joined they left a space for the 20mm floor bolts. Further more doing it like this meant that the groove could be
coated during assembly. I’m a firm believer in a coat of something before you fit it. Every rib, plank and floor
was painted before fitting and this I’m convinced can add years to the life of a wooden boat. It takes longer of
course which means it costs more, but well worth it.
All that was now left to do was to refit the new galvanised steel floors. Only I didn’t have them yet. Alain had
underestimated the complexity of the shape and it was taking longer than he thought. Added to the fact that
Alain works full time too meant that I was starting to get nervous. It was the fault of the galvanisers of course but
anyway they turned up in the end and were no problem to fit.
While the planks were being made I had help in the way of Luc’s son, Willem and his girlfriend Karlein and their
friend Peter. It was their job to strip and re-varnish the interior. I had tried to tell them not to underestimate how
hard the job would be but they were keen and enthusiastic and being young obviously thought I was just being a
stupid adult who knew nothing about anything. After a week they admitted that it was harder than they thought
but to be fair stuck it out and did a nice job.
Just paint to do. Although it’s called a 6 metre the whole is nearly 12 metres long. That’s a lot of boat to sand by
hand. This job was rendered less demoralising by throwing much labour at it. Even my cousin lent a hand and I
don’t think I’d ever seen him working before.
The final coat was rollered on and laid off with a brush and looked mighty fine. One tin of white and one tin of off
white was mixed together to make a very subtle shade of white. The gold cove line was re painted rather than
using the previous stuck on affair. The boot top was changed to a lovely rich Burgundy colour, strangely enough
not available in France. So it was ordered from the UK along with red bilge paint which is not available in
France either. Strange. Black antifouling completed the look.
José was called and agreed to come and collect the boat. Meanwhile it was our job to “walk” the boat as far out
of the shed as possible using the strops and hoists. This done we waited for José. And we waited and waited.
Competent, yes. Reliable, no. Still he did at least turn up and once again we found ourselves working in the
dark despite it being practically the longest day. It would be a shame to break with tradition after all. However,
the fact that it was dark in no ways diminished José’s skill in moving a 12 metre long boat about in incredibly
tight spaces. I guess he must have a lot of practice!
The following day Alexandra was launched with little ceremony. It was a small gathering. Luc, Willem and
another son, Karel and yours truly were there. We were very interested to see how the boat would sit on her
lines. We had no reference points to work to. No photos of her at rest, merely the dirty water mark left where it
was floating the last time and since the boat was often full of water this was not to be relied upon. At the end of
the day it was pretty much guess work. There had been talk of fitting a diesel engine although I was strongly
against this. A good compromise might be an electric motor but in any case it was clear that something would
be fitted in the future so if anything we wanted her to be slightly down at the bows so that when the engine or
batteries were fitted she would be level. I was very pleased and relieved to see her floating happily once again
and as near perfect on her lines as you could wish. Phew.
The next two weeks were spent re painting and repairing the decks which were too close to the roof in the shed
to do before. Besides, the weather was getting very dry and new cracks were appearing daily in Alexandra’s
top sides. It was obvious that she needed to get back in the water. New toe rails were made, the varnish was
quickly done, winches and blocks replaced and the rigging sorted. In typical last minute fashion the final
touches were made to Alexandra just as Luc arrived to start his holiday. The following day we went sailing. My
hands still carry the scars from pulling on the ropes that day. Luc, Gus and I begged a tow and set off. As soon
as the sails were up we shot off at over 7 knots pointing very high considering how tired the main was. She was
very nicely balanced and light on the helm, Responsive and communicative, a true thoroughbred in every sense.
We got soaked when the wind picked up to about 18 knots and we carried on smashing to windward at an
outrageous angle of heel. I thought if anything is going to break it will do it now. We changed down to the no 3
jib, no easy task on a fine and pitching fore deck, and that settled her down a bit but although not strictly
traditional, I suggested the new main have one reef just for cruising. That much strain won’t break the boat but
nor will it do it any favours. Alexandra is very lightly built, the hull alone weighing only a ton despite being 12
metres long, and to abuse her like this all the time will surely shorten her life. In the past a ring frame has been
added and the frames that support the chain plates had been enlarged but I’m in two minds as to whether this is
a good thing or not. It was probably put there because the leakage was put down to movement due to the mast
and rigging. I suspect it was done instead of replacing the necessary parts. Now that Alexandra is stronger than
ever perhaps she no longer needs them. The racing rules allow for two ring frames by the mast so it is clearly a
common modification.
Alexandra was entered in Les Voiles Des St Tropez in October and the DeCramers once again raced hard. It
pleases me greatly to see them using the boat as she was intended. Alexandra certainly safe guarded her
future when she was found by the DeCramers. Here’s to the next 60 years.
This is a tale of a boat and the people it has brought together. When Luc Decramer bought Alexandra he surely
had no idea what he was letting himself in for. He had wanted a classic yacht for many years and finally found
what he was looking for in Alexandra. She was a racing yacht from 1943 and he bought her on the spot. Since
then everyone who has come into contact with the boat has been on a huge learning curve, myself included.
Luc’s first surprise was that his boat was one of the famed 6 metre class. Designed by Knud Reimers and built
in Geneva in Switzerland. His second surprise was that she leaked like the proverbial sieve. No better analogy
could possibly serve. It was at this point that I entered the fray. I went to see the boat which was truly sinking. We
lifted her out to see if we could come at the leak. The first thing we discovered was a patch of fibreglass stuck
to both sides of the hull in the area of the mast step. Not a good sign. One of the crew members said he had
known the boat 15 years and it had always leaked really badly.
I was not optimistic about fixing the leak. I ripped off the patches and found a host of repairs all done in a hurry
at different times by different people. I said that I might be able to stop the main leak but didn’t see that my
efforts would be any better than the dozen or so ship wrights that got here before me. I did stop that leak but still
she leaked really badly. One crew member was required just for pumping and he spent most of the time up to
his knees in water. They also had an electric pump that sent out a continuous stream of water. Clearly
something needed to be done.
Luc loves his boat and wanted it not to leak so he asked if I would like to do the work. I did. So we set about
trying to get over all the obstacles that this decision had set in motion. First we needed somewhere to do it. Not
so easy here on the Riviera. Most yards are suspicious of wooden yachts since they are always there longer
than expected and space is so limited that the only way the yards make money is by turning over hundreds of
boats, they simply are not interested. I went everywhere and asked everyone but nothing could I find even
vaguely suitable for a boat that is over 11 metres long and 3 metres high. In the end an acquaintance put me in
touch with a crazy French man named Jacques.
I went to see him and the barn that he was offering. His farm is a few miles from St Tropez quite in the country
and perched on a hill with a lovely view of the bay of St Tropez. The barn was great but it was only 10 metres
long but that could be solved by leaving the doors open and building a small alcove. My main concern was the
bumpy, muddy and hilly driveway which was 2 km long. As for turning the boat around once there I wasn’t
confident. I told Jacques that if the transporter said he could do it I’d take it.
Next I called José who had been recommended to me by a mate. José is a tiny French bloke, even smaller than
me yet he is fearless. We went to see the barn and I asked if he thought he could do it. “Pourquoi pas” was his
simple reply. On the appointed day he turned up 4 hours late and by the time we got to St Tropez it was lunch
time so we took this opportunity to get fuelled up. It was going to be a long day. At about 16-00 M. Arman
strolled down to lift us out. His ancient yet well used and greased crane plucked Alexandra out and in one fluid
movement and with millimetre precision he placed it gently on José’s trailer. When we finally got away we drove
straight out into a traffic jam. Since it was November the days were not too long and it was getting dark as we
arrived. Half way up the drive José’s 4x4 couldn’t manage Alexandra’s 4 tons on its own so we had to add
Luc's car before we got to the top.
By now it was dark. All Jaques’ family were out and the scene was lit by torches and headlights while José did
the impossible and turned the boat around and backed it up to the shed. Getting this far was a good sign but
we still had to get her off and into the shed. I for one was keen to see how José planned to do that since his
trailer was higher than I’d imagined and as a consequence the boat was 20 cm higher than the door way. There
was a huge concrete beam over the door way there was no way to make the hole bigger. José was unfazed
and proceeded to reverse Alexandra in. By lifting the front of the trailer we could lower the stern. We managed
to get in a few metres until we touched the beam. To gain precious millimetres we removed a myriad of deck
fittings, winches etc and inched in bit by bit. In the end we even let all the air of the tyres. The best we could do
was to get her in far enough so that we could suspend her from the beam above the entrance. José had a huge
10 ton chain hoist and since Alexandra had lifting eyes it wasn’t too hard to hold her up while we tried to get the
trailer out. Even with the wheels removed it was no easy task removing the trailer but remove it we did. I
chocked up Alexandra and we all went home. It was after midnight.
So now we had her just metres away from where we wanted her and the saying “so near and yet so far”
suddenly made sense to me. In order to get her in we would have to fit RSJs to the barn. This we did and two
weeks later we walked her in with the aid of 4 little chain hoists and some borrowed strops. Then we closed the
doors a bit and built the alcove. While we were fitting the beams Gus, my faithful assistant was busy stripping
off the paint so we could see what was wrong. The worst discovery was the broken keel. That was a bit of a
shock. It had been like it for a long time, that much was obvious.
How can a 3 ton lead keel snap in two? You’re probably asking yourself. It happened something like this:
Despite having already designed a few 6’s, Reimers somehow miscalculated the weight of the keel and the
boatyard later removed a huge cube from the back of it. I calculated it to be roughly 500 kilos. I suspect they
wanted to remove more but they couldn’t. As it was they cut out a hole so big between two keel bolts that both
bolts were visible when I removed the wood. They had cut deep, leaving only about 8 cm at the bottom. The
keel is round underneath so there wasn’t really much holding it in one piece. I think this would have been OK
had the yard not fitted the wood so snugly leaving no room for when the wood swelled. This and the fact that the
lead at the bottom of the keel was of bad quality meant that when the wood swelled the force was so great that
it simply snapped what was left.
The front section of the keel had dropped by about 7mm and this huge gap between the lead and the keelson
had been filled with sikaflex and painted over. The crack on the keel had been filled with car body filler. I reckon
it had been like that for decades. Here was a show stopper. What were we to do? My obvious reaction was to
get someone else to do it but fate conspired against me. The original keel bolts were made of Iron and cast in
place. The bolts had corroded and swelled in their holes so I very much doubted if the boat would lift off the
bolts and I certainly didn’t have the room above the boat. I would have to cut through the bolts. That action alone
would mean making a new keel with the added difficulty of casting in 5x 30mm keel bolts and 6x 20mm floor
bolts in exactly the same place as before! Then there was the fact that the keel is a bit bulbous which would
mean a complicated mould because you wouldn’t be able to lift out the keel without separating the mould.
After much deliberation I decided to make a new keel. Luc agreed and so we set off on a great adventure.
Jacques had no problem with us making a keel by the barn so there seemed no reason why we couldn’t do it. I
had no experience making keels. I never once thought I’d have to do so. How many times have you come
across a snapped keel?
Where do you start? I knew that people had done similar things in gardens and boatyards manage to do it. I
searched the internet but didn’t have much joy. I discovered that Lead melts at about 570 degrees Celsius. I
found a few sites of companies that make keels but little on DIY keel making. One crazy bunch of Americans
tried but their wooden mould leaked then burst into flames. Basically I was on my own. We would need some
lead, 3 tonnes just to be sure we had a bit extra. The decision to use new lead was taken collectively after I
discovered that the whole starboard side of the keel was crumbling away. Since Alexandra was built during the
war it was a fair guess that the lead may not have been of the best quality, the demand for bullets being what it
was. Boat keels are not made of pure lead, they must have between 3 and 6% Antimony. The price for this
Antimonial lead varied hugely ranging from about 3000€ to over 8000€ suffice to say we opted for the cheaper
of the two which came from Belgium in ninety 35 kilo pigs. It was delivered by an artic truck even though I told
the transport company that we were in a place that is inaccessible. That was fun, I met with the driver and he
followed me to Jacques. I never would have thought it possible. He got as far as Jacques’ drive and even then
turning around was not easy but he did a fantastic job. He told me if he had known where I was taking him he
wouldn’t have come. I knew that, that’s why I didn’t tell him! The pigs were dumped on the road and we loaded
up Jacques’ Land Rover three times and soon we had an ugly pile of lead outside the workshop.
I didn’t have much joy finding out about mould making. I suppose I should have made a steel mould in two
halves but that seemed to me to be rather expensive and difficult to get those lovely curves right. I didn’t know
how the sand technique worked and didn’t see how I could cast bolts in with any accuracy. In the end I
discovered that there was a high temperature resin that might work. Rob Francis at Borden Chemicals was
brilliant and I decided to make a mould using their Phenolic resin. When it burns it carbonises but stays in
shape. The only draw back is that it gives off moisture as it fully cures. I did some experiments on a small scale.
The moulds I made withstood the molten lead but bubbled a bit as the resin gave off water. However this did not
affect the final product and I can’t help feeling that the bubbling lead assists in removing any air pockets that
might occur.
Before I could make a mould I had to remove and reassemble the old keel. With a reciprocating saw and a long
blade I cut through the keel and floor bolts. Just before I cut the last bolts I made up a crude cradle on greased
boards to allow me to move the keel out from under the boat. The boat was supported by strops under the stern
and bow. I cut the bolts, the hull popped up free of the burden. The hull on a 6 metre accounts for only about
25% of the weight of the boat. With the keel off I saw that the keelson was bowed as a result of the snapped
keel. I chocked the boat up with all it’s weight on one point in the hope that when I was ready to fit the keel it
would have straightened up a bit. Not only was the keelson bowed, so too was the stern post. I removed the
steel floors, the only part of the boat not to have moved, so that the hull could relax. If you looked along the hull
planking you could see that where the floors were the hull seemed to be bulging out.
Moving the keel about was done with a couple of chain hoists. I welded crude eyes to the old keel bolts and
lifted it up a bit so that I could work on it. Once the two pieces were back together I set about making the shape
smooth again. I also had to take into account a shrinkage of about 3%. On a 3 metre keel that’s about 30mm
along it’s length but just a few across it’s width. I added filler to the keel to extend and widen it. This was a horrid
job and very dusty. I used a ridiculous amount of filler, some 12 kilos. When it was shaped it looked great and I
painted it and applied wax so that the mould would release when cured.
I then laid up a few laminates using chopped strand mat and the phenolic resin. The problem with the resin is
that it only cures with temperature. I was doing this in December. I hired a space heater and stoked the fire up. I
managed to get the resin to cure enough to be able to remove the mould. But because of the slightly bulbous
shape I had to cut it in half to get it off. I then moved into the kitchen, right infront of the fire. I used all the 25
gallons of resin and ended up with a fairly solid structure. The resin is salmon pink as it starts to cure then goes
a deeper red.
Next task was to make a framework that could be attached to the keel bolts to so that they would be in the right
place when cast in. This I did using angle iron and thin rod. The keel bolts were remade and fitted into the
original holes in the keelson. I then welded them together to ensure they would stay in the same place. The floor
bolts would be tapped in later.
One other task I had to do was making the keel the same weight as it was before but without being weak as it
was before. I finally discovered these bricks that are very light and could easily withstand the heat. I cut these
and bolted them to the framework. One cubic centimetre of lead weighs 11 grams so it was easy to calculate
how much brick to insert in the keel. It was possible to remove the same weight as before yet not from the same
place. I wanted to leave a decent wall thickness so put bricks in between 4 bolts and not two as before.
There was yet another issue to complicate matters further and that was that the boat was still sitting stern down
despite the huge block of lead the original builders had taken out. Luc was talking about fitting an engine so it
made sense to try to move some of that weight forward. The best I could manage was to move 100 kilos
forward by about a metre. Would it make much difference? There would be only one way to know for sure and
that would be to put the boat in the water and that was a long way off.
All these decisions made, it was time to consider the actual casting of the keel. The local scrap yard cut a huge
steel gas cylinder in two for us but wouldn’t deliver. Luckily Jacques came to our rescue, and not for the first
time either and put it on his trailer. This was placed on the remains of the RSJs and 4 huge bricks, the same
type used inside the keel. Each one can take a 54 ton load despite being really light. Jacques donated a
rectangular water tank to act as a grate. I cut it up and made holes in the bottom. A trough was dug under this in
the hope that the fire could get more air. A way was needed to control the flow of molten lead so I concocted a
valve from 20mm bar ground to a point at one end. This was inserted into a steel gas pipe fitting welded to the
bottom of the cauldron. A lever was attached so that it could be moved up and down without getting near the fire.
The 3 tons of lead was moved again, not far but humping ninety 35 kilo pigs 4 metres and up one metre is no
easy task. They were stacked neatly in the cauldron. Three tons of oak was ordered from a local wood yard.
Sounds like a huge amount I know but I thought it best to have too much than not enough, besides we needed
fire wood for the workshop, it can get quite fresh in the winter.
The mould with its framework, keel bolts and bricks was placed into a hole that was dug by Cristophe in his
mini digger but he sliced through the water supply to the workshop which was interesting for a while. The earth
was put back in and packed as tightly as possible around the mould. All we had to do now was do it. I had
simply been ignoring the fact that at some point I would have to actually pour the keel. If it went wrong it would
mean much complication and certainly expense and lost time. It didn’t bear thinking about. Which is why I didn’t
think about it. More than once I asked myself what I was doing.
We started early and Gus got the fire going, as it got hotter we added more and more logs until an hour or two
later we had a roaring and extremely red fire so hot you couldn’t get near it. The lead started to melt quite
quickly and it was fun to see the pigs collapsing. To get the whole three tons liquid took about 4 hours.
In retrospect the keel pouring was an anti climax. I opened the tap, nothing happened so we heated up the short
outlet pipe with a serious blow torch and suddenly out it came. A mere 5 minutes later we were done. I shut the
tap, the flow stopped and there was a keel already starting to cool at the extremities.
The next day Cristophe dragged it out of the ground with the digger and we were faced with the prospect of
dragging it into the shed a distance of 6 metres over a sandy surface. Gus solved this problem brilliantly. Why
didn’t we use the old keel (which was in the shed) to pull in the new one? The chain hoists were attached and
we heaved it in slowly. Once under a beam it was easy to lift it up in order to clean it up and lower it onto a
cradle so it could be moved about. 4 holes were drilled into the floor and steel bar inserted. These were the
anchor points for the chain hoists. The keel could now be moved in any direction.
The keelson had certainly straightened out during the two months resting with all the boats weight in one place.
It still wasn’t straight but it was a considerable improvement. One added bonus was the straightening of the
rudder post which previously was also bowed. The top of the keel was cleaned up. I found the electric plane to
work best especially when used backwards. All the chippings were gathered to be melted down later.
The underneath of the keelson was painted and repaired in places. The boat was lowered onto the keel and the
floor bolt holes marked from above. The keel was dragged out again and the holes tapped to a depth of about
7 cms. A special tap was bought to enable us to cut a thread 20mm in diameter. This took some time but
wasn't as hard as I thought it would be. 6 x 20mm bolts were then made in varying lengths from about 30cms to
over 100cms begging the question how did the boat yard do this. Did they lower the boat over a metre onto the
keel? All the bolts are in the same plane so it’s possible at least. Above Alexandra was a mere 30cms so there
was no choice for us.
The boat was bedded onto the keel with 3M 5200 polysulphide. 8 tubes were squeezed onto the keel and the
boat lowered onto it. I reckon you could leave the keel bolt nuts off and that keel could never fall off. I pity the
poor bastard that has to take the keel off next time, luckily I’ll have been dead for about 50 years so they can
curse me all they want!
Finally the keel was done. We all went out to our favourite restaurant to celebrate. Between Gus and I we did
400 hours work and 3 months had passed since we first put Alexandra in the shed. “What a job!”
Now I could start on the woodwork. First were the frames, a bit bigger than the ribs at 35 x 30mm. Here was a
chance to get the boat in shape a bit more. Since the steel floors couldn’t move but the wood could, there was a
bump by each floor so this was remembered when I fitted the frames. Gradually she straightened up a bit.
There were 18 frames to replace. They were oak originally and steamed but since I had no desire to take off
the plywood deck to gain suitable access decided to scarf them on to the existing frames using ash, which likes
epoxy and bends well. It’s easier to work than oak and in its laminated form is probably as strong as the original
oak. The main reason I used ash was in the hope that the steel bolts that are fitted through them will not corrode
so readily as if they would in oak.
After the frames, the ribs, all 36 of them. Some of them had unbelievable bends and even thin laminations were
only just doing it. How those original boatbuilders managed to steam them round remains a mystery. They must
have broken so many.
6 weeks passed doing the frames and ribs. Now that the skeleton was repaired I could do the skin. We bought
50x 3metre long planks in varying thicknesses from a wood yard in Belgium, Honduras mahogany as original,
mainly because some of the interior is varnished. It’s a nice wood to work but it made my hands go black for the
whole time I was doing the planking.
Alexandra’s planks are 16mm thick, tapering towards the ends, down to as little as 12mm. It’s clear to me now
that Knud Reimers was a great designer but he was no boat builder. I can well imagine the curses as those
poor builders tried to get a piece of wood to bend into one of Alexandra’s amazing curves. The first 6 planks on
each side were steamed in. I would make a template of the plank I wished to change from thin strips of 3mm
ply. These strips are tacked to the top and bottom of the space and held there by gluing on vertical strips
making a strong whole that doesn’t change shape. This is placed onto the plank and it is marked with a very
sharp and concentration inducing Japanese marking knife. Then the jigsaw is used to cut close to this line and
after the block plane cleans it up. A bit of trimming here and there and the plank is ready for fitting.
I decided to start at the bottom and work up. This way I would be able to fit the last planks on a convex part of
the hull, since they would not be trapped by their neighbours. Originally Alexandra was planked up with no
caulking of any kind but I decided to spline the hull since there would be a mixture of old and new planks and to
get planks fitting with that sort of precision takes much longer to achieve. We didn’t have the time. Some of the
original planks had really shrunk so a spline wood was needed that could compress well and take up the slack,
producing a tight hull but without stressing the structure too much. Red cedar fitted the bill perfectly and I had the
local wood yard cut me 200 metres of angled splines with the grain running in such a way as to maximise the
compressibility.
Nowadays splines are made by routing a square section between two planks, a difficult and slow process. I
figured it would be possible to put the bevel on the bottom of each plank and pre make the slot for the spline.
This way it would taper and allow me to glue only the top of the spline to the plank so that if for some reason a
plank needs removing, it won’t be stuck to it’s neighbours. Since I was going to replace most of the planks
under the waterline I could pre cut most of the spline slots leaving only about 20 metres to do. A special hooked
blade was made that very efficiently opened the slight gap and left it clean for the splines.
It was Gus’s job to fit the splines. He used a staple gun to hold the splines in place, as far in between the planks
as possible. Just before the epoxy had gone off the staples were removed.
Another job for Gus was making and fitting the plugs. All 2000 of them in two sizes, ½ inch and 5/8 th of an inch,
the larger ones being the floor bolts. The bigger plugs were glued in with PPU glue so that they might be
removed more easily when the galvenised bolts are wasted. After the plugs were done I went round with a
chisel and a mallet and bashed off the plugs, leaving just a little to sand down.
The bottom concave planks were fitted by steaming. The planks were soaked overnight and spent a good hour
being vaporised. Speed was called for here, not only that but organisation. Clamps were laid on the floor ready
opened for use. The plank was put in rough position and clamped up. When it had cooled the clamps could be
loosened and the plank knocked down to sit on the one below it. The next few planks were shaped. An old
wooden plane was modified to cut a concave shape to the planks. After planing I used 60 grit sand paper on a
long and convex block. After fitting the planks to the boat they needed final shaping. This was done with a belt
sander on the convex areas and a spokeshave used across the grain on the concave stuff. It worked
surprisingly well and I was very pleased with the final shape of the planking.
Planks done now, she was looking good, almost a shame to paint it. Still much work needed to be done. As I
was doing the planks I realised the full extent of the rot in the wooden floors so they all needed remaking.
Originally these huge 60mm thick monsters were made from crooks of Oak but there was no chance I’d ever
find anything like that so I didn’t even bother to try. I used instead Sapeli which is a hard wood and relatively
easy to work. I made the floors out of many pieces and laminated them up into one extremely strong structure.
Rather than drill the holes for the floor bolts later I routed out a groove in the two centre sections so that when
joined they left a space for the 20mm floor bolts. Further more doing it like this meant that the groove could be
coated during assembly. I’m a firm believer in a coat of something before you fit it. Every rib, plank and floor
was painted before fitting and this I’m convinced can add years to the life of a wooden boat. It takes longer of
course which means it costs more, but well worth it.
All that was now left to do was to refit the new galvanised steel floors. Only I didn’t have them yet. Alain had
underestimated the complexity of the shape and it was taking longer than he thought. Added to the fact that
Alain works full time too meant that I was starting to get nervous. It was the fault of the galvanisers of course but
anyway they turned up in the end and were no problem to fit.
While the planks were being made I had help in the way of Luc’s son, Willem and his girlfriend Karlein and their
friend Peter. It was their job to strip and re-varnish the interior. I had tried to tell them not to underestimate how
hard the job would be but they were keen and enthusiastic and being young obviously thought I was just being a
stupid adult who knew nothing about anything. After a week they admitted that it was harder than they thought
but to be fair stuck it out and did a nice job.
Just paint to do. Although it’s called a 6 metre the whole is nearly 12 metres long. That’s a lot of boat to sand by
hand. This job was rendered less demoralising by throwing much labour at it. Even my cousin lent a hand and I
don’t think I’d ever seen him working before.
The final coat was rollered on and laid off with a brush and looked mighty fine. One tin of white and one tin of off
white was mixed together to make a very subtle shade of white. The gold cove line was re painted rather than
using the previous stuck on affair. The boot top was changed to a lovely rich Burgundy colour, strangely enough
not available in France. So it was ordered from the UK along with red bilge paint which is not available in
France either. Strange. Black antifouling completed the look.
José was called and agreed to come and collect the boat. Meanwhile it was our job to “walk” the boat as far out
of the shed as possible using the strops and hoists. This done we waited for José. And we waited and waited.
Competent, yes. Reliable, no. Still he did at least turn up and once again we found ourselves working in the
dark despite it being practically the longest day. It would be a shame to break with tradition after all. However,
the fact that it was dark in no ways diminished José’s skill in moving a 12 metre long boat about in incredibly
tight spaces. I guess he must have a lot of practice!
The following day Alexandra was launched with little ceremony. It was a small gathering. Luc, Willem and
another son, Karel and yours truly were there. We were very interested to see how the boat would sit on her
lines. We had no reference points to work to. No photos of her at rest, merely the dirty water mark left where it
was floating the last time and since the boat was often full of water this was not to be relied upon. At the end of
the day it was pretty much guess work. There had been talk of fitting a diesel engine although I was strongly
against this. A good compromise might be an electric motor but in any case it was clear that something would
be fitted in the future so if anything we wanted her to be slightly down at the bows so that when the engine or
batteries were fitted she would be level. I was very pleased and relieved to see her floating happily once again
and as near perfect on her lines as you could wish. Phew.
The next two weeks were spent re painting and repairing the decks which were too close to the roof in the shed
to do before. Besides, the weather was getting very dry and new cracks were appearing daily in Alexandra’s
top sides. It was obvious that she needed to get back in the water. New toe rails were made, the varnish was
quickly done, winches and blocks replaced and the rigging sorted. In typical last minute fashion the final
touches were made to Alexandra just as Luc arrived to start his holiday. The following day we went sailing. My
hands still carry the scars from pulling on the ropes that day. Luc, Gus and I begged a tow and set off. As soon
as the sails were up we shot off at over 7 knots pointing very high considering how tired the main was. She was
very nicely balanced and light on the helm, Responsive and communicative, a true thoroughbred in every sense.
We got soaked when the wind picked up to about 18 knots and we carried on smashing to windward at an
outrageous angle of heel. I thought if anything is going to break it will do it now. We changed down to the no 3
jib, no easy task on a fine and pitching fore deck, and that settled her down a bit but although not strictly
traditional, I suggested the new main have one reef just for cruising. That much strain won’t break the boat but
nor will it do it any favours. Alexandra is very lightly built, the hull alone weighing only a ton despite being 12
metres long, and to abuse her like this all the time will surely shorten her life. In the past a ring frame has been
added and the frames that support the chain plates had been enlarged but I’m in two minds as to whether this is
a good thing or not. It was probably put there because the leakage was put down to movement due to the mast
and rigging. I suspect it was done instead of replacing the necessary parts. Now that Alexandra is stronger than
ever perhaps she no longer needs them. The racing rules allow for two ring frames by the mast so it is clearly a
common modification.
Alexandra was entered in Les Voiles Des St Tropez in October and the DeCramers once again raced hard. It
pleases me greatly to see them using the boat as she was intended. Alexandra certainly safe guarded her
future when she was found by the DeCramers. Here’s to the next 60 years.
